Coil Tubing unit ct-03

SHALLOW GAS COIL TUBING UNIT

Configuration: Tandem - Tandem Kenworth

Service Depth: (1.25") 1,500 m - (1.5") 1,500 m

Injector: Hydraco, 40 K - 2 speed

​Crane/Picker: Fassi 150

Air Compressor: Hydraco 2000 psi, 600 cfm

​Catch Tank: 10 m3 capacity

​​

​Bandit Coil Tubing Ltd

​​​

Shallow Gas & Intermediate             Coil Tubing Services

services

- Class I & II Well Operations.

- Clean Outs with Air, N2 or fluids.

- Pull and Set Plugs

- Shift Frac Ports

- Pressure test Frac Ports

- Acid Squeezes

- Slim Hole (Tbg) Operations

- Pull and Land Syphon Strings

- Abandonments with downhole plugs & tools.

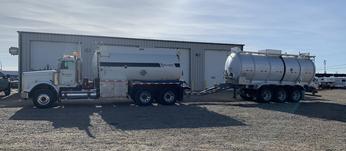

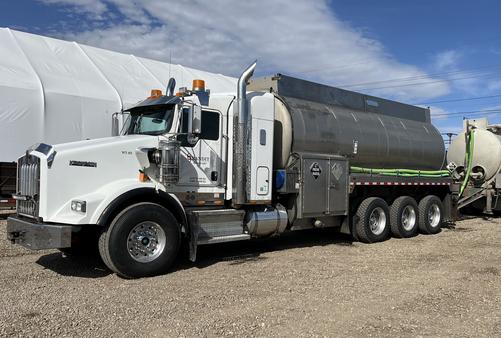

- 2 Water trucks & trailers, 35m3 capacity.

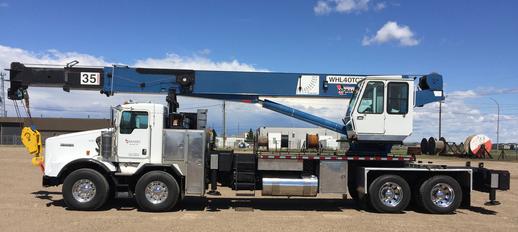

- 40 Ton Crane

- 5,000 psi Pressure Truck

- 10,000 psi Pressure Truck

Coil tubing unit ct-02

Shallow Gas/Intermediate COIL TUBING UNIT

​Configuration: Single - Tri Drive Kenworth

Service Depth: (1.25") 1,600 m - (1.5") 1,600 m

Injector: Hydraco, 40 K - 2 speed

Crane/Picker: Amco Veba - V815F

Air Compressor: Hurricane 2000 psi, 600 cfm

Treating Iron: Integral 2", 100 Mpa

​Accumulator System: 22 gallon Class II

Catch Tank: 10 m3 capacity

coil tubing unit CT-01

INTERMEDIATE COIL TUBING UNIT

Service Depth: 38.1 (1.50") 4,000 m - 50.8 (2.0") 3,300 m

Injector: Hydraco Ind, 55 K - 2 speed

Stripping Head: Progressive Quick Strip 35 Mpa

BOP Configuration: Lee Dual Combi 5", 4" & 3" 35 Mpa

Treating Iron: Integral 2", 100 Mpa

Instrumentation: MEDCO Real Time Data Acquisition

Crane/Picker: Fassi 150 - 15 Tonne (Mounted on CTU)

Accumulator System: 22 gallon Class II

Lubrication: 5" Bowen 35 Mpa, 10 meters

Hydraulic Hose Reel: 30 meters

Catch Tank: 10 m3 capacity
